Vibra UF series

Built-in weighing unit
Capacity：620g〜3200g／Readability：0.001g～0.01g

High-Accuracy/Fast Response in 56 mm width of top class in the industry.

Common　Specification

Tare	Zero to Full weighing range
Span adjustment	Manual operation Span Adjustment with external calibration weight
Ingress Protection Rating	IP65 *4
Power source	DC +24V± 10%, 0.1A
Interface	Half duplex RS485, Full duplex RS232C 1200 to 38.4kbps

Features

Realized a high-accuracy weighing with min. resolution (0.001g). (UF-620)
Display resolution 1mg at 5% capacity.: approx. 0.4 sec, Weighing renewal
rate at max.100 times/sec, Fast response. (UF-620)
Dust-proof and water-proof: All enclosure is made with stainless steel.
IP65 standards compliant, implement water-proof connector (Optional)

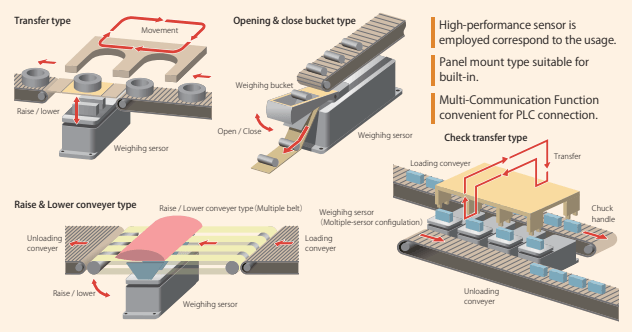

Able to output data directly to PLC or PC.

Specification

Model name	UF-620	UF-3200
Capacity	620g	3200g
Readability (d)	0.001g	0.01g
Repeatability	0.001g	0.1g
Linearity	±0.002g	±0.02g
Stabilization time	0.4 sec.	0.4 sec.
data updating interval (max)	106 times/sec.	106 times/sec.
Dimentions(WDH)	56x230x85mm	56x230x95mm

Functions

Back-light LCD display
Stand-by
Switching function of Min. readbilitry
RS232C output
IP65 standard compliant dust-proof & water-proof structure

Option

Model No.	Option Name
UD-1	Display unit
UF BCD	BCD Option
UF WPAN	Weighing pan
UF AD	AC adaptor
UF CB	Connector cable (10m)
UF WPCB	Water proof connector cable (10m)
